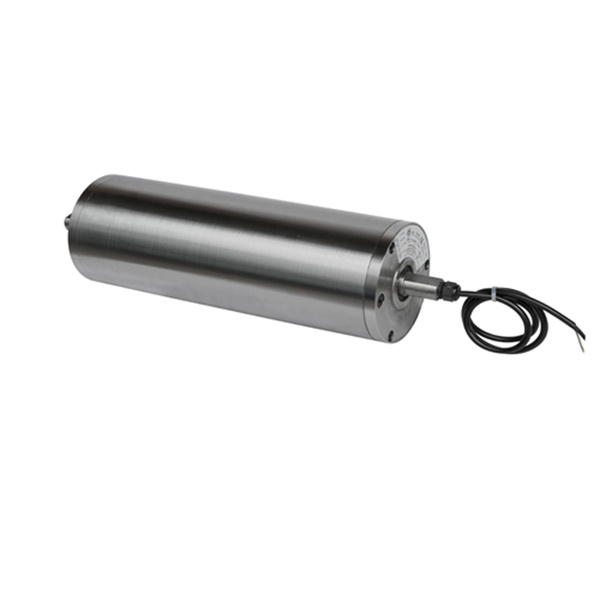

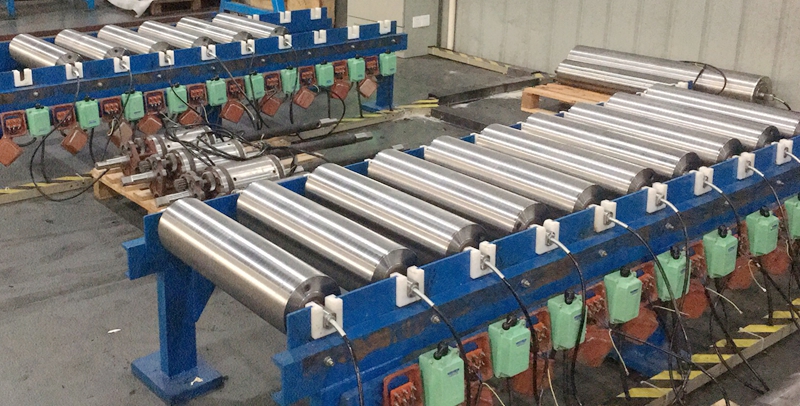

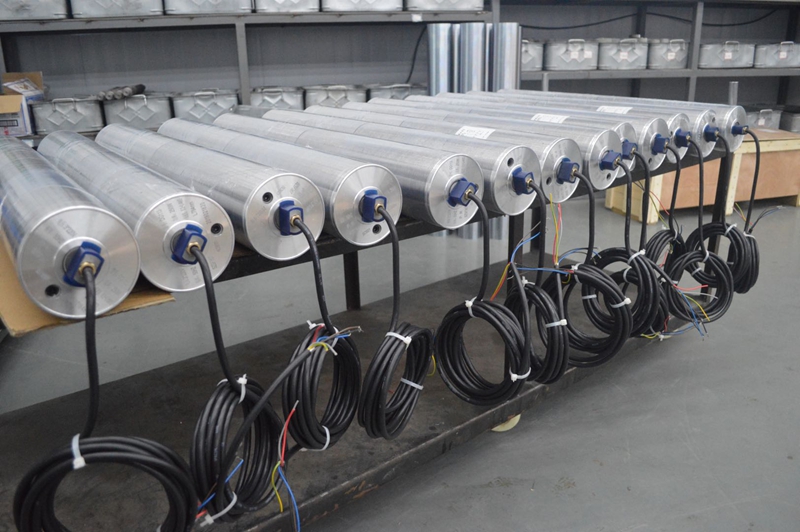

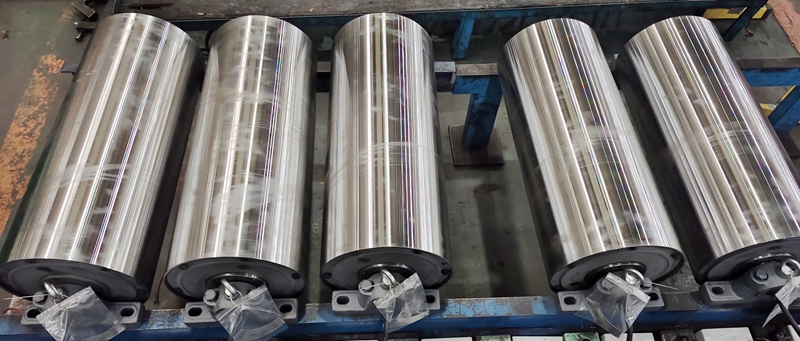

1.Both of motor and the reducing mechanism is installed inside the body of drum.
2.YD adopt low power oil-immersed motor(0.12Kw to 7.5KW). With advavtages of eximious heat dissipation performance, YD drum motor can long time running.
3.The internal structure is similar to Interroll,RULMECA , is the most superior now.
4. High efficiency,light weight,low noise,long service-life,and widely used in foods process,postal sorting office,light industry,airport luggage handling,harbours and electrical apparatus lines etc.
Parameter List
|
Dia (mm) |
Power (kw) |
Speed V(m/s) | Min Length | length | weight | 50mm mass | ||
| Ø110 | 0.25 | 0.04,0.047.0.05.0.055.0.06.0.065.0.07.0.075.0.08 | 350 | 350 | 16 | 1.1 | ||
| .0.09.0.10.0.12.0.152.0.20 | ||||||||
| 0.25,0.30,0.32,0.34.0.38.0.44.0.53 | 320 | 350 | ||||||
|
Ø130 |
0.25 | 0.046,0.056,0.065,0.07,0.08,0.10,0.13.0.15.0.18.0.226 | 350 | 350 | 17 | 1.5 | ||
| 0.29.0.35.0.40.0.45.0.52.0.63 | 320 | 350 | ||||||
| 0.55 | 0.046,0.056,0.058.0.068.0.071.0.08.0.09.0.10.0.12.0.14,0.15.0.18.0.226 | 400 | 400 | 19 | 1.5 | |||
| 0.29.0.35.0.40.0.45.0.52.0.63 | 370 | 400 | ||||||
| Ø174 | 0.75 | 0.03.0.04.0.05.0.063.0.08.0.10.0.13.0.16.0.20 | 470 | 500 | 50 | 1.8 | ||
| 0.25.0.32.0.40.0.50.0.63.0.80.1.00.1.25.1.60.2.00 | 400 | 400 | 40 | |||||
| Ø216 | 0.75 | 0.05.0.063.0.08.0.10.0.13.0.16.0.20.0.25 | 470 | 500 | 70 | 2.5 | ||
| 0.32.0.40.0.50.063.0.80.1.00.1.25.1.60.2.00.2.50 | 400 | 400 | 60 | |||||
| 1.1 | 0.13.0.16.0.20.0.25.0.32.0.40.0.50.0.63.0.80.1.00 | 410 | 450 | 63 | ||||
| 1.25.1.60.2.00.2.50 | ||||||||
| 1.5/2.2 | 0.13.0.16.0.20.0.25.0.32.0.40.0.50.0.63.0.80.1.00,1.25.1.60.2.00.2.50 | 460 | 500 | 69 | ||||
| 3 | 0.13.0.16.0.20.0.25.0.32.0.40.0.50.0.63.0.80.1.00,1.25.1.60.2.00.2.50 | 510 | 550 | 73 | ||||
| Ø240 | 0.75 | 0.056.0.07.0.089.0.11.0.14.0.18.0.22.0.28.0.36 | 470 | 500 | 80 | 2.8 | ||
| 0.44.0.56.0.70.0.89.1.11.1.39.1.78.2.22.2.78 | 400 | 400 | 70 | |||||
| 1.1 | 0.14.0.18.0.22.0.28.0.36.0.44.0.56.0.70.0.89.1.11.1.39,1.78.2.22.2.78 | 410 | 450 | 70 | ||||
| 1.5/2.2 | 0.14.0.18.0.22.0.28.0.36.0.44.0.56.0.70.0.89.1.11.1.39,1.78.2.22.2.78 | 460 | 500 | 78 | ||||
| 3 | 0.14.0.18.0.22.0.28.0.36.0.44.0.56.0.70.0.89.1.11.1.39,1.78.2.22.2.78 | 510 | 550 | 81 | ||||
| Ø320 | 1.1 | 0.13.0.16.0.20.0.25.0.32.0.40.0.50.0.63.0.80.1.00.1.25,1.60.2.00.2.50 | 420 | 450 | 120 | 3.2 | ||
| 1.5/2.2 | 0.13.0.16.0.20.0.25.0.32.0.40.0.50.0.63.0.80.1.00.1.25,1.60.2.00.2.50 | 470 | 500 | 126 | ||||
| 3 | 0.13.0.16.0.20.0.25.0.32.0.40.0.50.0.63.0.80.1.00.1.25,1.60.2.00.2.50 | 520 | 550 | 132 | ||||
| 4 | 0.25,0.32.0.40.0.50.0.63.0.80.1.00.1.25.1.60.2.00.2.50,3.15 | 560 | 600 | 150 | ||||
| 5.5 | 0.25,0.32.0.40.0.50.0.63.0.80.1.00.1.25.1.60.2.00.2.50,3.15 | 560 | 600 | 155 | ||||
| 7.5 | 0.25,0.32.0.40.0.50.0.63.0.80.1.00.1.25.1.60.2.00.2.50,3.15 | 660 | 700 | 160 | ||||
| Ø400 | 1.1 | 0.16.0.20.0.25.0.32.0.40.0.50.0.63.0.80.1.00.1.25.1.60,2.00.2.50 | 420 | 450 | 140 | 5 | ||
| 1.5/2.2 | 0.16.0.20.0.25.0.32.0.40.0.50.0.63.0.80.1.00.1.25.1.60,2.00.2.50 | 470 | 500 | 145 | ||||
| 3 | 0.16.0.20.0.25.0.32.0.40.0.50.0.63.0.80.1.00.1.25.1.60,2.00.2.50 | 520 | 600 | 152 | ||||
| 4 | 0.32.0.40.0.50.0.63.0.80.1.00.1.25.1.60.2.00.2.50.3.15,4.00 | 560 | 550 | 170 | ||||
| 5.5 | 0.32.0.40.0.50.0.63.0.80.1.00.1.25.1.60.2.00.2.50.3.15,4.00 | 560 | 650 | 175 | ||||
| 7.5 | 0.63.0.80.1.00.1.25.1.60.2.00.2.50.3.15,4.00 | 660 | 750 | 190 | ||||
Mounting External Size
Notes:
Mounting canter distance A=L+2F+C.
the drum motor has bracket,A is the distance between two bracket canter.In case it has not bracket, A is the distance between two symmetrical mounting tenons canter,which are both shaft ends.
| D(mm) | a | b | c | d | e | f | g | h | s |
| Ø110 | / | / | 20 | 25 | 21 | 5 | / | / | / |
| Ø130 | / | / | 20 | 25 | 21 | 5 | / | / | / |
| Ø174 | 120 | 160 | 60 | 32 | 25 | 5 | 105 | 50 | 15 |
| Ø216 | 120 | 160 | 60 | 38 | 30 | 5 | 105 | 50 | 15 |
| Ø240 | 120 | 160 | 60 | 38 | 30 | 5 | 105 | 50 | 15 |
| Ø320 | 210 | 260 | 60 | 42 | 35 | 10 | 120 | 95 | 19 |
| Ø400 | 210 | 260 | 60 | 42 | 35 | 10 | 120 | 95 | 19 |
