Products > Logistics equipment > Drive roller > O-Belt Wheel Roller(DP2260)
Product name : O-Belt Wheel Roller(DP2260)
Item : 2014713165946
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:

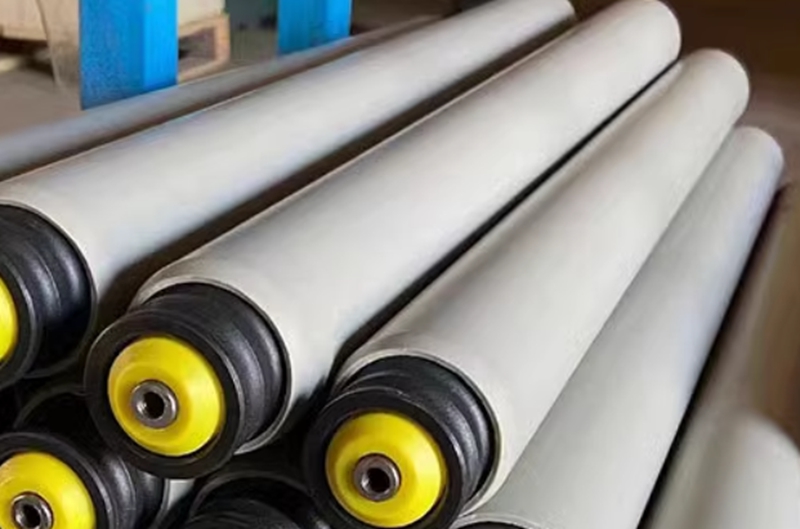

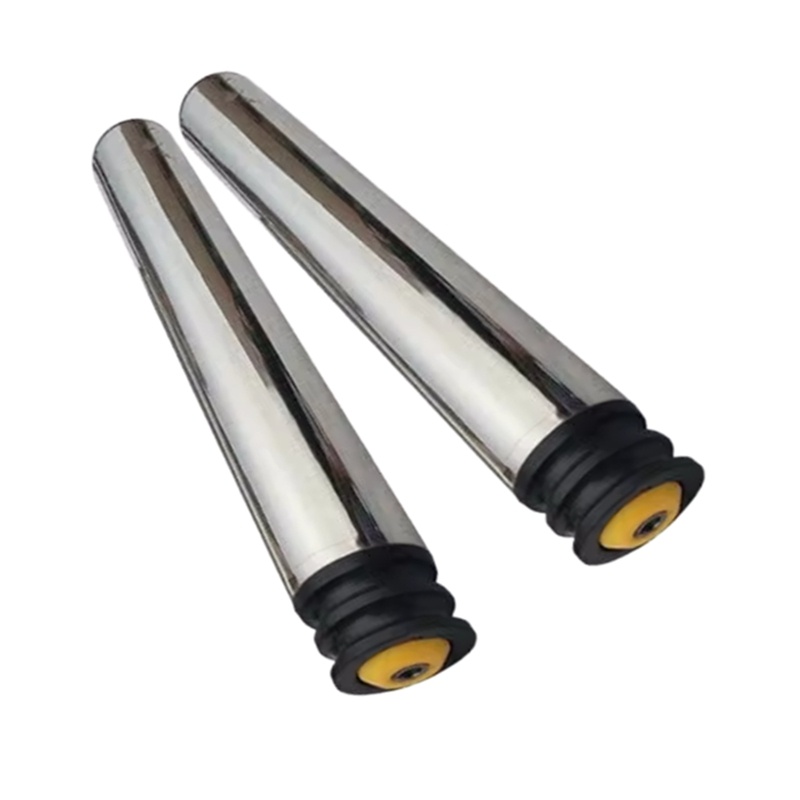

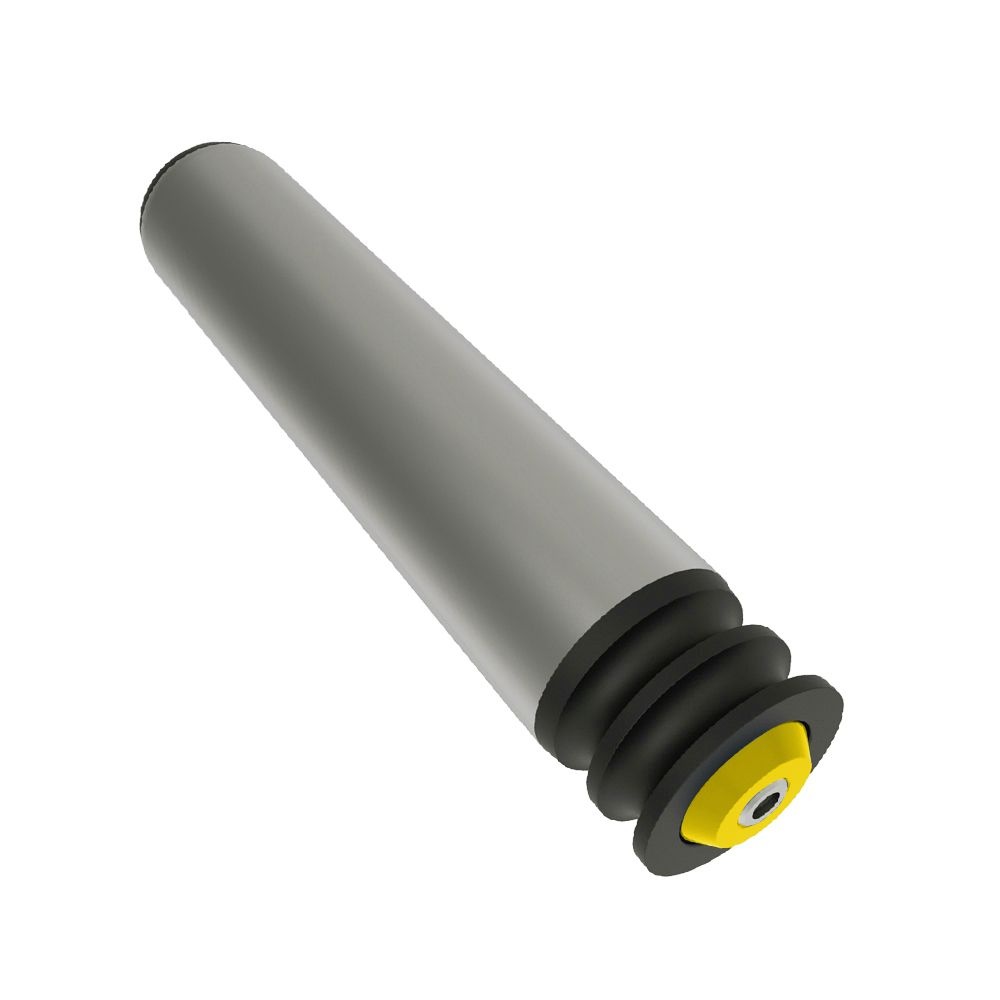

O-Belt Wheel Roller—DP2260

1.The end driven, more stabilized conveying
2.Beautiful, quiet operation
3.Could apply in high speed for light & middle duty

Description:
1. Actually, DP2260 is improved series of DP2230 series. It does not make grooves on the tube, but moving the "O-blet" wheel to the end of the roller, make it separate between drive space and convoy space, so as to avoid the interference between "O-belt" and conveying goods, also avoid the oil from the surface of goods polluting the "O-belt".
2. Because it is not grooving on the tube, the tube will not have any distortion, and so the roller will run more smoothly.
3. The groove position is fixed, the collocation seems not so flexible, but it could be solved by cooperation with DP2230 series.
4. The load capacity of roller depend on the driving power of "O-belt" and the transmission structure(line shaft drive is higher than hook-UPS), reference data is normally less than 300N.
5. Precision ball bearing polymer bearing housing, end cap form the bearing unit which is not only for good looking but also further more for the smooth and quiet running.
6. The end cap of roller resists dust and water splash well in operation enviroment.
7. Suitable in high speed application. Speed could vary according to diameter and length of roller, Max. Speed up to 120m/min.
8. Temperature range: 0 to +40℃
