DP Roller(Huzhou) Co.,Ltd.

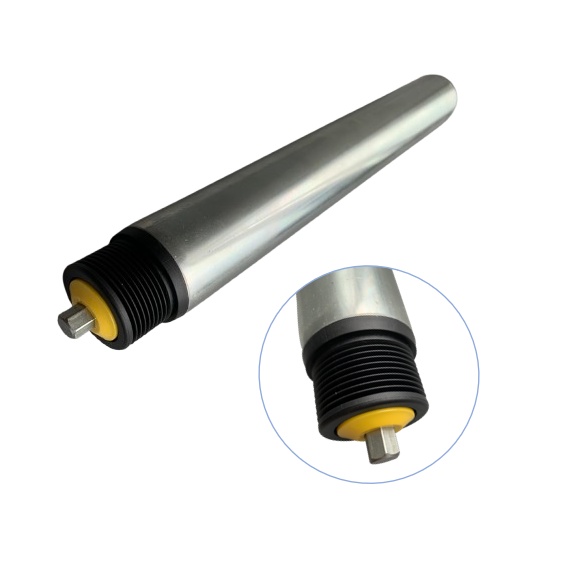

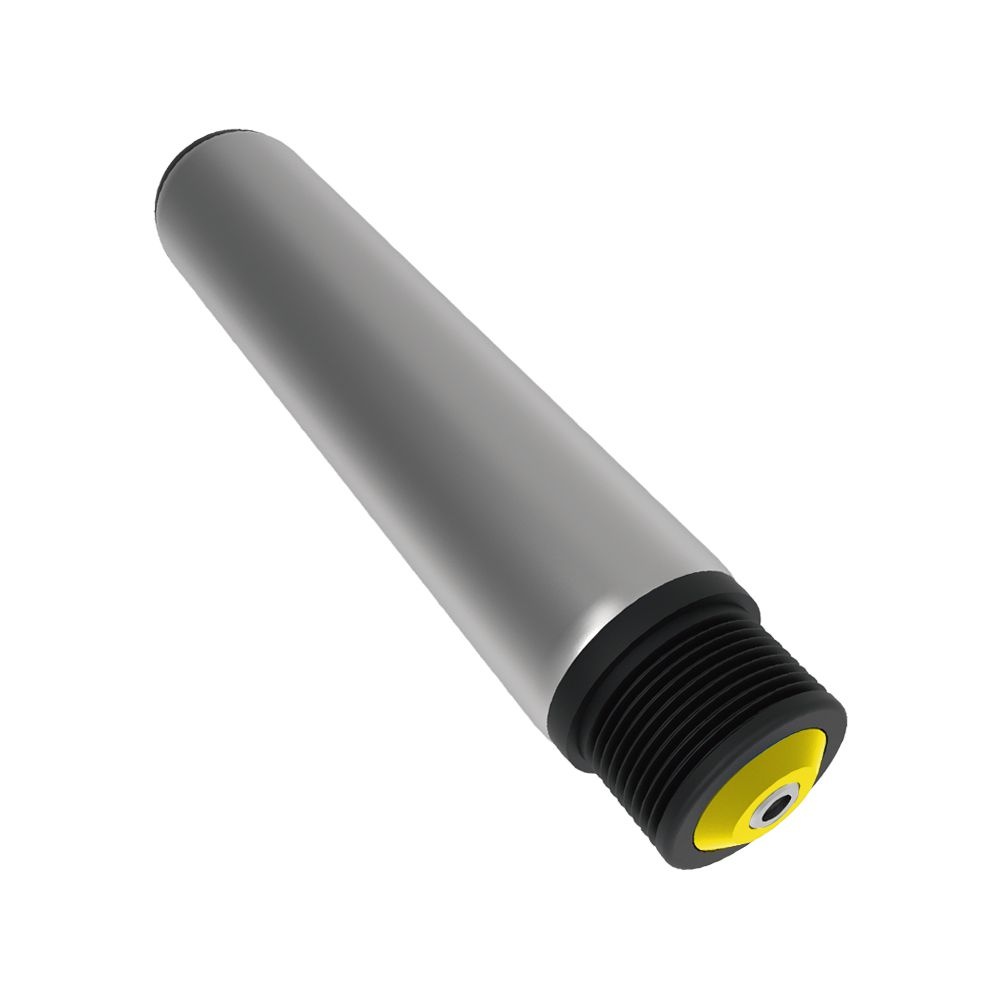

Poly-vee Roller—DP2250
1.Poly-vee drive roller has high speed, quiet operation same as O-Belt roller
2.9 V-grooves, more options of PJ poly-Vee belt
3.Higher transport efficiency
Description
1. "O-belt" roller could not solve the problem of weak loading capacity, but this problem could be well solved by DP2250 series of Poly-vee roller, and this type of roller has also the feature of "O-belt" roller like high speed and low noise.
2. PJ type of Poly-vee belt, pitch 2.34mm, ISO9982.
3. According to the load to convey, you could choose the Poly-vee belt of 2 grooves or 3 grooves. Even for the Poly-vee belt of 2 grooves, the unit convey capacity could reack 50kg.
4. The assembly of Poly-vee wheel and tube make it seprate between drive space and convoy space, avoid the effect of oil from the surface of coveying goods to the Poly-vee belt.
5. The defferent roller pitch (centre distance between rollers) requires defferent type of Poly-vee belt.
6. Precision ball bearing polymer bearing housing, end cap form the bearing unit which is very important, it is not only for good looking but also further more for the smooth and quiet running.
7. The end cap of roller resists dust and water splash well in operation environment.
8. Suitable in high speed application. Speed could vary according to diameter and length of roller, Max. Speed up to 120m/min.
9. Temperature range: -5~+40℃
