Products Description

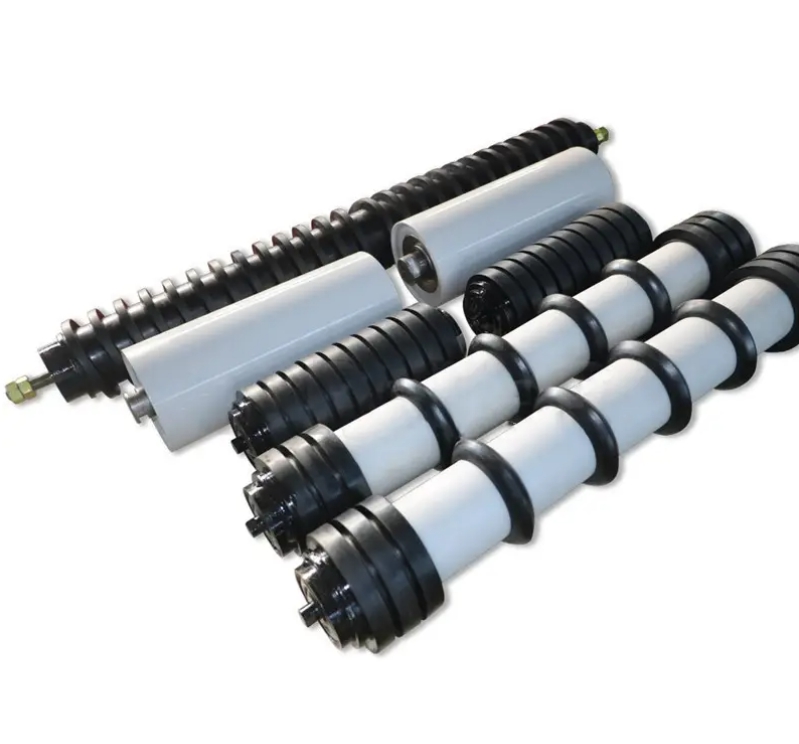

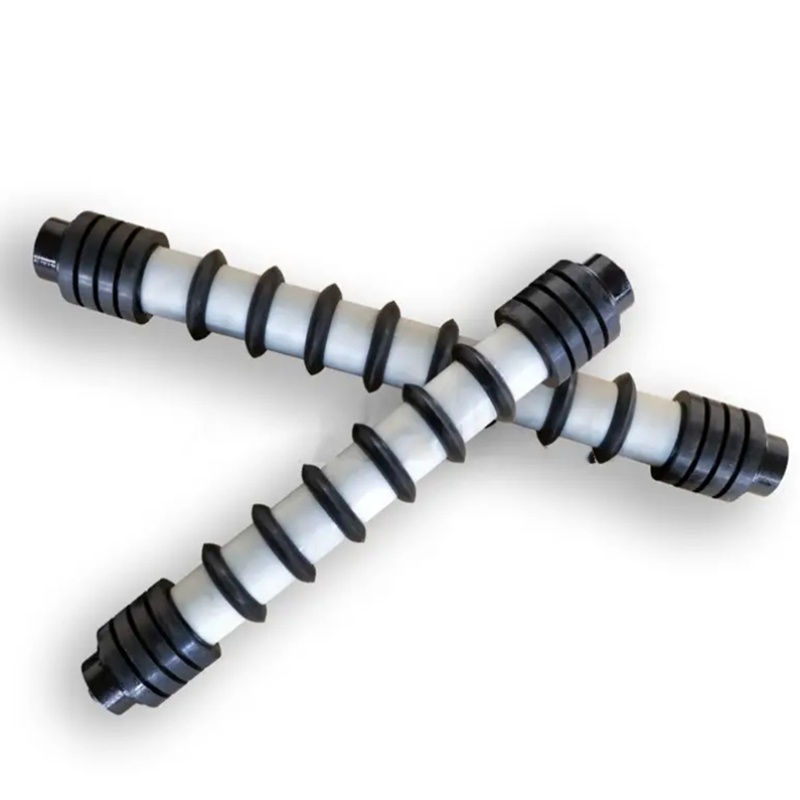

Comb type idler / Comb type roller
Application: Belt Conveyor for Bulk Material Handling.
Application Environment: Quarry, Wharf, Coal mine, Batching plants, Steel plant........
Conveying Material: Coal, Stone, Mineral….
Roller support the belt and are guaranteed to rotate freely and easily under load. They are the most important components of the conveyor and represent a considerable value of the whole coast. The correct sizing of the roller is fundamental the guarantee of the plant efficiency and economy in use.

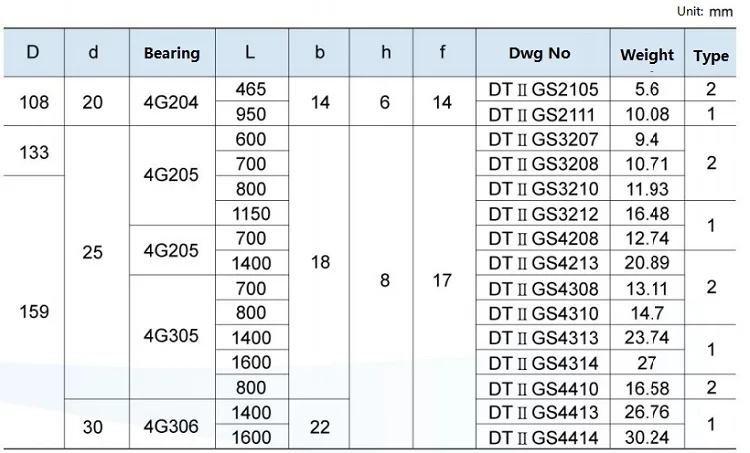

General technical data
No.
|
Part
|
Description
|
1
|
Tube
|
Steel(Q235), Stainless Steel
|
2
|
Shaft
|
Uncoated steel(C45 steel), stainless steel
|
3
|
Bearing housing
|
Stamping(Steel)
|
4
|
Bearing
|
Precision ball bearing,2RZ,C3
|
5
|
Seal
|
Labyrinth Seal (Nylon)
|
6
|
Comb type Disc
|
Rubber
|
Structure Drawing
