Product name : Chain conveyor
Item : 2016329104930
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:

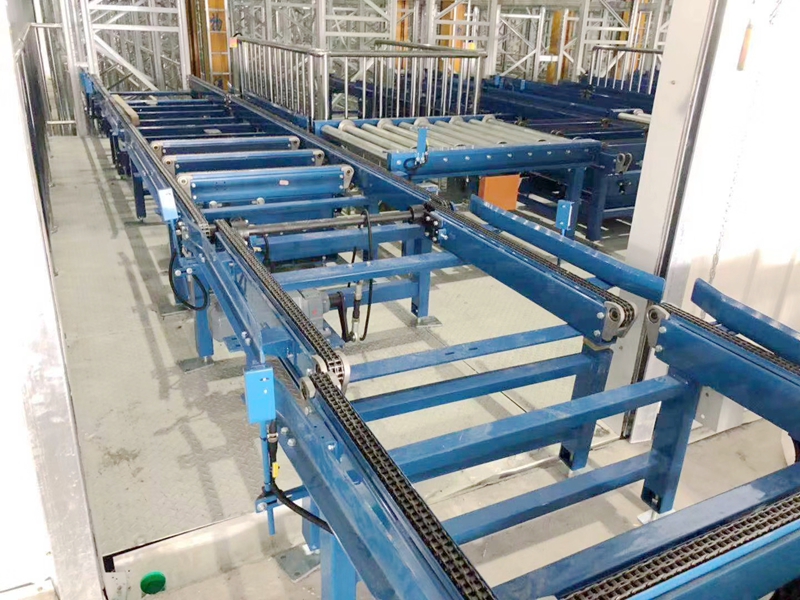

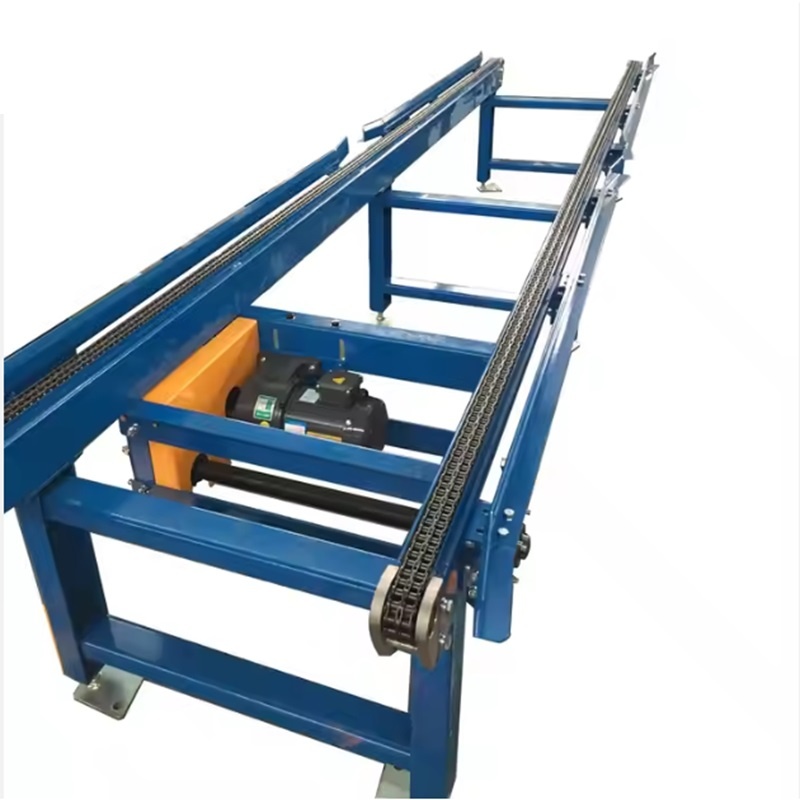

Chain conveyor

    Chain conveyor conveying goods in pallet types ,is composed of frame assembly, drive assembly, support, chain and guard rail assembly etc. Motor on drive frame drives chain on both sides by drive shaft assembly. Chain is running along the tracking on frame. There is chain tensioning unit on drive frame. Steel or aluminum is available for frame material.
    Standard chain conveyor uses 10B-2 double row straight chain. Select formed steel for standard guard rail. In special cases, it can be special guard rail according to working condition requirements.
    Support uses welded or bolted support. Adjustable foot is mounted at the bottom for height adjustment within the range of ±30mm. Distance between supports is determined by working condition, usually it is between 800-1500mm.

●max length of standard chain conveyor: 6000mm
●simple structure, stable running, accord with international safety standard
●modular design
●easy installation and maintenance
●used in indoor pallet conveying
