Products > Logistics equipment > Drive roller > O-belt Tapered Sleeve Roller(DP2530/2540)
Product name : O-belt Tapered Sleeve Roller(DP2530/2540)
Item : 2014716192450
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


  Details:

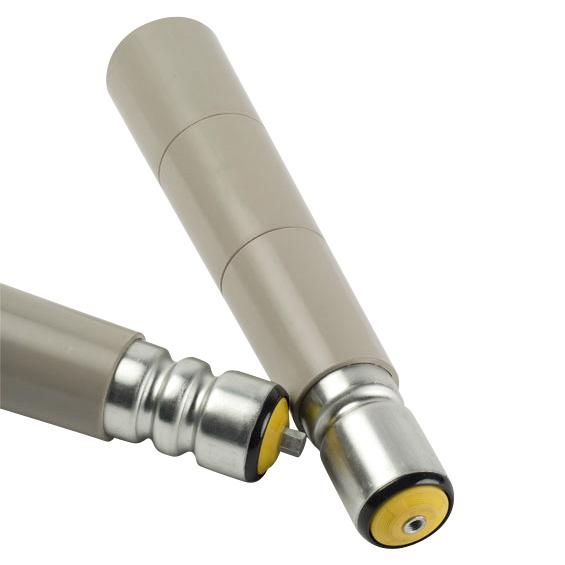

O-belt Tapered Sleeve Roller—DP2530/2540

1.Light weight, easy start-up
2.Quiet running, shockproof and well abrasion resistant
3.O-belt drive, grooves position customized


Description:

1. Based on the DP2230/2240, covered with polypropylene (PP) tapered sleeve, abrasion resistance, low noise, shockproof, not influenced by change of temperature and climate.
2. Light weight, easy start-up.
3. Except standard type, the position and nubmer of grooves could be cusotmized.
4. The load capacity of roller depend on the driving power of "O-belt" and the transmission structure (line shaft drive is higher than hook-UPS). Reference data is normally 300N.
5. Precision ball bearing polymer bearing housing, end cap form the bearing unit which is very important, it is not only for good looking but also further more for the smooth and quiet running.
6. The end cap of roller resists dust and water splash well in operation environment.
7. Operation temperature: 0 to +40℃

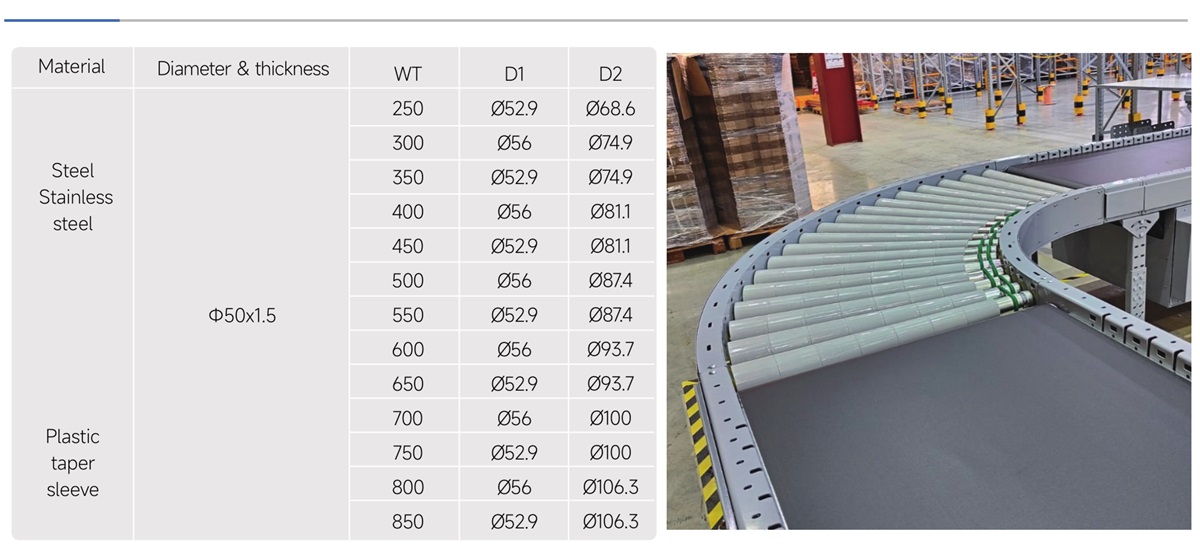

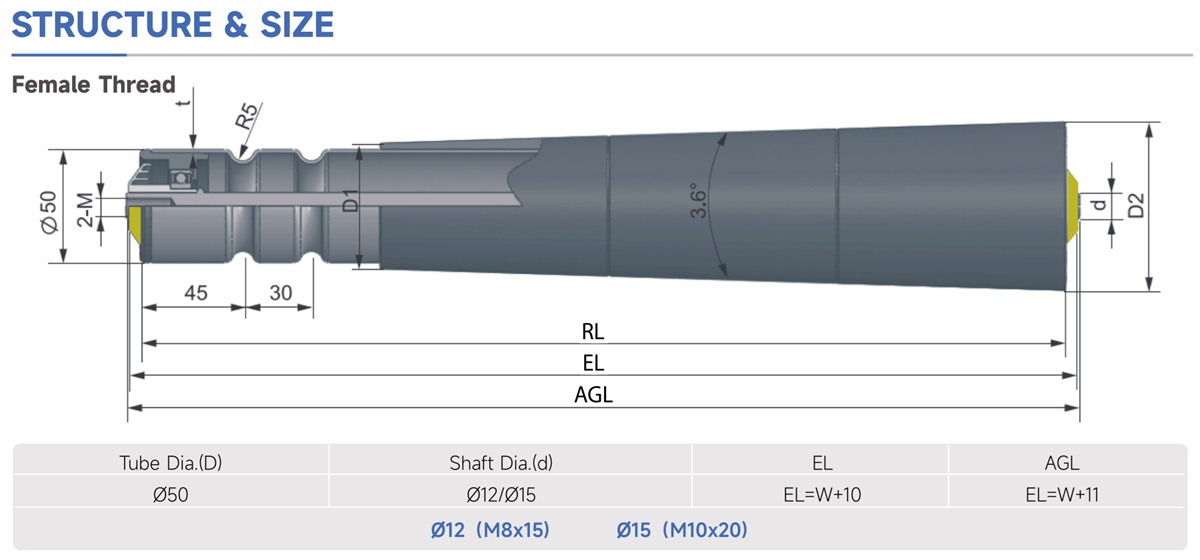

DP2530


DP2540
